Single Phase Electronic Energy Meter For Electricity Energy Measurement

Product Details

Place of Origin: CHINA

Certification: CE

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: Negotiable

Packaging Details: 50*60

Delivery Time: 5 weeks

Payment Terms: L/C, D/A, D/P, T/T

Supply Ability: 5000 Pieces per Week

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                    single phase electric meter, Single Phase Electronic Energy Meter, Direct Connected digital electric meter


Installation:	Direct Connected	Electric Equipment:	Single-phase
Measured Signal:	Continuous Wave	Frequency:	45~60Hz
Rated Voltage:	0~1000V DC	Display:	Digital
Usage:	Watt-Hour Meter	Color:	White

Installation:	Direct Connected
Electric Equipment:	Single-phase
Measured Signal:	Continuous Wave
Frequency:	45~60Hz
Rated Voltage:	0~1000V DC
Display:	Digital
Usage:	Watt-Hour Meter
Color:	White

Description

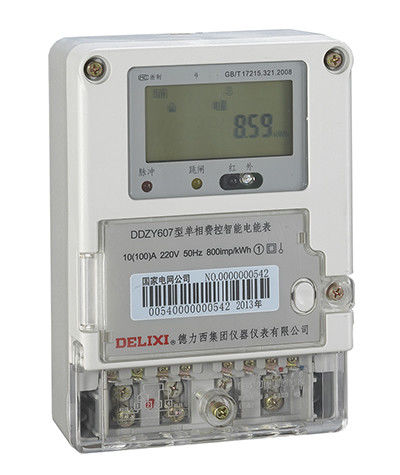

Single Phase Electronic Energy Meter For Electricity Energy Measurement

Single Phase Electronic Energy Meter For Electricity Energy Measurement

Product Description

The single-phase electronic watt-hour meter adopt exclusive use LSI, the device typifying new periphery component, simple structure, high reliability, low power consumption, long life etc, is suitable for the single-phase AC active electric energy with rated frequency of 50Hz.

Product Advantage

Measure active electric energy, no need of calibration for long-term operation;
Adopt dedication meter age chip ADE7755;
Adopt lasted electricity dedication integrated circuit including digital multiplier overseas, greatly improved dynamic working range of Meter, making 1 multiple actual overload;
Have good mistake linearity in the range of 5%lb~1max;
Few periphery component, simple structure, low consumption;
Adopt high reliability and long life electronic component, so the meter assume.

Main parameters
Rated voltage: 220V /230V/240V
Rated current : 10(40)A. 10(60)A. 20(80)A. 20(100)A
Accuracy level: 1class
Size: 216mm x 130mm x 73mm
Defluction: with the logical design of anti-defluction
Display: LCD

Essential function
1. Security Mechanism of Prepayment
2. Prepaid function (locally top-up)
3. Prepaid function (management)
4. Anti-tamper function
5. Self-check function
