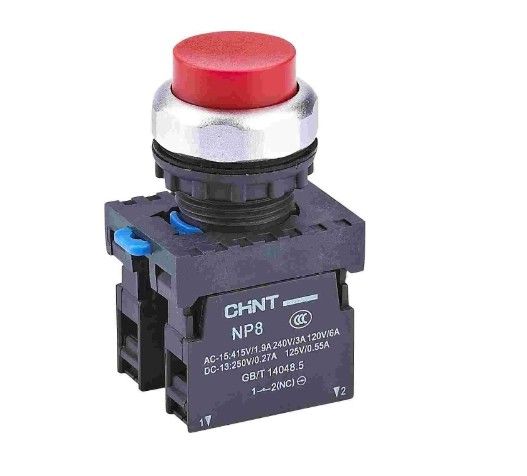

NP8-GN High Button IP54 Industrial Control Circuit Pushbutton Switch
NP8-GN High Button IP54 Industrial Control Circuit Pushbutton Switch
Product Description:
The NP8 series pushbutton switch is suitable for AC circuits at 50 Hz (or 60 Hz), with a rated working voltage of 415 V and below, or in DC circuits with a rated working voltage of 250 V and below. It is designed for industrial control circuits to control electromagnetic starters, contactors, relays, and other electrical circuits. A pushbutton switch with an indicator light is also suitable for light signal indication applications.
Meet the standard: GB/T 14048.5.
Product Specification:
| Type |
Meaning |
Auxiliary Code |
Color |
Rated operational voltage(Ue) |
| BN |
Flat button |
1(white) 2(black) 3(green) 4(red) 5(yellow) 6(blue) |
|
|
| GN |
High button |
| M |
Mushroom head reset button |
Button head diameter: 1(Φ40) 2(Φ60)
3(Φ30) (ZS special use) |
1(white) 2(black) 3(green) 4(red) 5(yellow) 6(blue) |
| ZS |
Mushroom head self-locking rotating reset button |
4(red) |
LED lamp: AC/DC 6V 12V 24V 36V AC
110V~220V |
| MD |
Lighted mushroom head reset button |
1(white) 3(green) 4(red) 5(yellow) 6(blue) 7(orange) |
| SD |
Two-color lighted button |
Red button + green button |
| XD |
Lighted toggle switch |
21, two-position lock 22, two-position reset 31, three-position lock 33, three-position reset 37, left position locked, right position reset 38, right position locked, left position reset |
| X |
Toggle switch |
1(white) 2(black) 3(green) 4(red) 5(yellow) 6(blue) |
| Y |
Key switch |
|
| S |
Two-color key switch |
Red button + green button |
| BND |
Lighted flat button |
1(white) 3(green) 4(red) 5(yellow) 6(blue) 7(orange) |
| GND |
Lighted high button |
| D |
Indicator light |
Product Feature:
●Operating mechanism features: bright colors and streamline surface.
●Modular design: Operating system, adapter, contact system and illuminating system can be freely combined to realize different functions.
●Convenient for mounting and dismounting thanks to snap-on structure.
●Automatic locking function of the central adaptor makes it convenient and reliable for mounting and connection.
●The terminal screw is available with anti-loosing mechanism to protect it against loosening from the body during transportation.
●LED lamp with high brightness and long service life ensures reliable indication.
Operating Conditions and Environmental Suitability:
●Ambient temperature is -5℃~+40°C, the average temperature during 24 hours couldn't exceed +35°C.
●Altitude: ≤2000m.
●Atmosphere condition: Relative humidity of the atmosphere couldn't exceed 50% when the highest temperature is +40°C; much higher relative humidity is allowable under the condition of lower temperature, for example, when the temperature reaches +20°C, the relative humidity
is up to 90%, taking into account the condensation that may occur on the product surfaces due to temperature changes.
●Pollution grade: 3.
●Installation category: II.
●Tightening torque is 0.8~1.2N.m for the cable terminals. Cross section of the cable connection is 0.5~2.5mm, and 8mm conductor length is needed.
