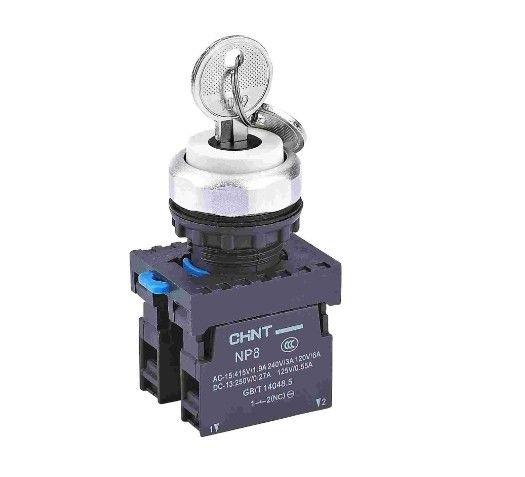

NP8-D Indicator Light IP54 Industrial Control Circuit Pushbutton Switch
NP8-D Indicator Light IP54 Industrial Control Circuit Pushbutton Switch
Product Description:
The NP8 series pushbutton switch is suitable for AC circuits at 50 Hz (or 60 Hz), with a rated working voltage of 415 V and below, or in DC circuits with a rated working voltage of 250 V and below. It is designed for industrial control circuits to control electromagnetic starters, contactors, relays, and other electrical circuits. A pushbutton switch with an indicator light is also suitable for light signal indication applications.
Meet the standard: GB/T 14048.5.
Product Specification:
| Type |
Meaning |
Auxiliary Code |
Color |
Rated operational voltage(Ue) |
| BN |
Flat button |
1(white) 2(black) 3(green) 4(red) 5(yellow) 6(blue) |
|
|
| GN |
High button |
| M |
Mushroom head reset button |
Button head diameter: 1(Φ40) 2(Φ60)
3(Φ30) (ZS special use) |
1(white) 2(black) 3(green) 4(red) 5(yellow) 6(blue) |
| ZS |
Mushroom head self-locking rotating reset button |
4(red) |
LED lamp: AC/DC 6V 12V 24V 36V AC
110V~220V |
| MD |
Lighted mushroom head reset button |
1(white) 3(green) 4(red) 5(yellow) 6(blue) 7(orange) |
| SD |
Two-color lighted button |
Red button + green button |
| XD |
Lighted toggle switch |
21, two-position lock 22, two-position reset 31, three-position lock 33, three-position reset 37, left position locked, right position reset 38, right position locked, left position reset |
| X |
Toggle switch |
1(white) 2(black) 3(green) 4(red) 5(yellow) 6(blue) |
| Y |
Key switch |
|
| S |
Two-color key switch |
Red button + green button |
| BND |
Lighted flat button |
1(white) 3(green) 4(red) 5(yellow) 6(blue) 7(orange) |
| GND |
Lighted high button |
| D |
Indicator light |
Product Feature:
●Operating mechanism features: bright colors and streamline surface.
●Modular design: Operating system, adapter, contact system and illuminating system can be freely combined to realize different functions.
●Convenient for mounting and dismounting thanks to snap-on structure.
●Automatic locking function of the central adaptor makes it convenient and reliable for mounting and connection.
●The terminal screw is available with anti-loosing mechanism to protect it against loosening from the body during transportation.
●LED lamp with high brightness and long service life ensures reliable indication.
Operating Conditions and Environmental Suitability:
●Ambient temperature is -5℃~+40°C, the average temperature during 24 hours couldn't exceed +35°C.
●Altitude: ≤2000m.
●Atmosphere condition: Relative humidity of the atmosphere couldn't exceed 50% when the highest temperature is +40°C; much higher relative humidity is allowable under the condition of lower temperature, for example, when the temperature reaches +20°C, the relative humidity
is up to 90%, taking into account the condensation that may occur on the product surfaces due to temperature changes.
●Pollution grade: 3.
●Installation category: II.
●Tightening torque is 0.8~1.2N.m for the cable terminals. Cross section of the cable connection is 0.5~2.5mm, and 8mm conductor length is needed.
FAQ:
Q:What about the time limit for getting a quote?
A:Typically, we provide a quotation within 24 hours after receiving your inquiry and confirming the technical details.
Q: What is the shipping method?
A: It could be shipped by sea,by air or by express(EMS,UPS,DHL,TNT,FEDEX and ect).Please confirm with us before placing orders.
Q:What about quality and warranty?
A:Within 24 months from the delivery date (typically 12 months in the industry), if any accessories have issues, simply provide photos of the damaged parts, and we will supply free replacements. We also offer free wearing parts depending on the quantity purchased and technical support upon request.
