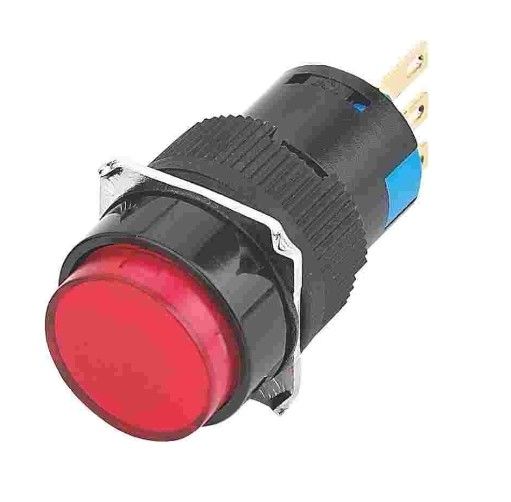

NP6-XD Indicator Light IP40 Industrial Control Circuit Pushbutton Switch
NP6-XD Indicator Light IP40 Industrial Control Circuit Pushbutton Switch
Product Description:
The NP6 series buttons are suitable for circuit control systems with AC 50Hz or 60Hz, voltage to 220V and DC operating voltage to 220V. As the main order element or power switch, it is also widely used in CNC equipment, instruments and small control equipment and other fields. Pushbuttons with indicator lights are also suitable for lighting signal indication applications.
Meet the standard: GB/T 14048.5.
Product Specification:
| Derivative Code |
Meaning |
Number of normally open and normally closed contact pairs |
Auxiliary Specification Code |
Note |
| DS |
illuminated self-locking flat button |
11,one normally open and one normally closed (single-pole double-throw)
22,two normally open and two normally closed (double-pole double-throw) |
1,white 5,yellow
2,black 6,blue
3,green 7,orange
4,red |
light working voltage 6V,12V,24V |
| D |
illuminated self-resetting flat button |
light working voltage 6V,12V,24V |
| BS |
self-locking flat button |
|
| B |
self-resetting flat button |
|
| J |
mushroom head self-resetting button |
3,green 4,red 5,yellow |
|
| ZS |
mushroom head locking button |
|
| Y |
key-operated knob |
2,two-position locking 3,three-position locking |
|
| X |
rotary knob |
|
| XD |
indicator light |
|
1,white 3,green 4,red 5,yellow
6,blue 7,orange |
working voltage 6V,12V,24V |
Product Feature:
The NP6 series pushbutton features a snap-in mounting structure, making the cover easy to install and remove. Its contact system employs a low-force, snap-action instantaneous switch mechanism that ensures reliable operation. The anti-rotation positioning components ensure accurate installation and prevent loosening. For rotary pushbuttons, the knob can be rotated through any 45-degree angle and relocked to change the operating position. The terminals are arranged on the same plane, facilitating the installation of different button units together and making it easier to solder the leads.
Operating Conditions and Environmental Suitability:
●Ambient temperature is -5℃~+40°C, the average temperature during 24 hours couldn't exceed +35°C.
●Altitude: ≤2000m.
●Atmosphere condition: Relative humidity of the atmosphere couldn't exceed 50% when the highest temperature is +40°C; much higher relative humidity is allowable under the condition of lower temperature, for example, when the temperature reaches +20°C, the relative humidity is up to 90%, taking into account the condensation that may occur on the product surfaces due to temperature changes.
●Pollution grade: 2.
●Installation category: II.
●The NP6 series pushbutton should be installed in an environment without significant shaking, impact, vibration, and without exposure to rain or snow.
●It should be installed in an environment without the risk of explosion and where the medium does not contain gases that could corrode metals or destroy insulation, nor excessive dust.
●The cutout dimensions for the mounting panel: Φ16 0+0.2mm.
