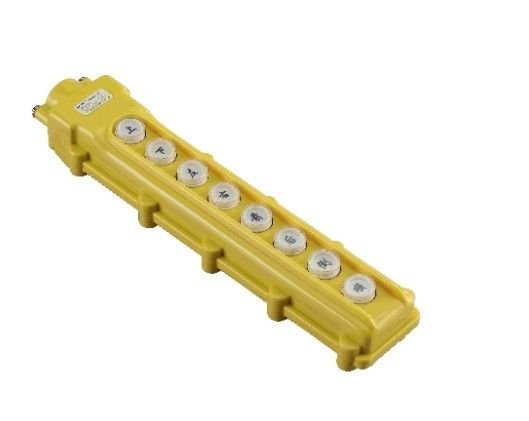

NP3 Series Push Button IP65 Industrial Control Circuit Pushbutton Switch
NP3 Series Push Button IP65 Industrial Control Circuit Pushbutton Switch
Product Description:
The NP3 series pushbuttons are suitable for circuit control systems with AC 50Hz or 60Hz, voltage to 380V and DC operating voltage to 220V. These buttons are specifically designed for outdoor use in environments exposed to rain, snow, and dust, such as in cranes and electric hoists, for remote control purposes.
Meet the standard: GB/T 14048.5.
Product Specification:
| Contact resistance |
≤50mΩ |
| Mechanical life (Million Times) |
Instantaneous type:100, emergency stop self-locking button:5, other buttons:25 |
| Electrical life (Million Times) |
Emergency stop self-locking button:AC 5, other buttons:AC 50 |
| Head protection rating |
IP65 |
| Short circuit protection |
type gG model 16 |
| Usage Category |
Rated working voltage Ue(V) |
Rated working current le(A) |
| AC-15 |
380 |
2.5 |
| 220 |
4.5 |
| DC-13 |
220 |
0.3 |
| 110 |
0.6 |
Product Feature:
•Design: The buttons feature a fully plastic housing with an attractive appearance and a well-designed structure.
•Protection: Equipped with rubber cable glands and waterproof seals, providing good dust and water resistance.
•Performance:
•Most buttons have automatic reset functionality, except for the "start", "general stop", circuit master switch "ON", and "self-locking" buttons.
•They include mechanical interlocking mechanisms for forward and reverse control, which simplifies the circuit and effectively protects the circuit and equipment during operation.
These buttons are designed for reliable operation in harsh outdoor environments and are equipped with protective features to ensure safe and effective control of equipment.
Operating Conditions and Environmental Suitability:
●Ambient temperature is -5℃~+40°C, the average temperature during 24 hours couldn't exceed +35°C.
●Altitude: ≤2000m.
●Atmosphere condition: Relative humidity of the atmosphere couldn't exceed 50% when the highest temperature is +40°C; much higher relative humidity is allowable under the condition of lower temperature, for example, when the temperature reaches +20°C, the relative humidity is up to 90%, taking into account the condensation that may occur on the product surfaces due to temperature changes.
●Pollution grade: 3.
●Installation category: II.
●The NP3 series pushbutton should be installed in an environment without significant shaking, impact, vibration, and without exposure to rain or snow.
●It should be installed in an environment without the risk of explosion and where the medium does not contain gases that could corrode metals or destroy insulation, nor excessive dust.
