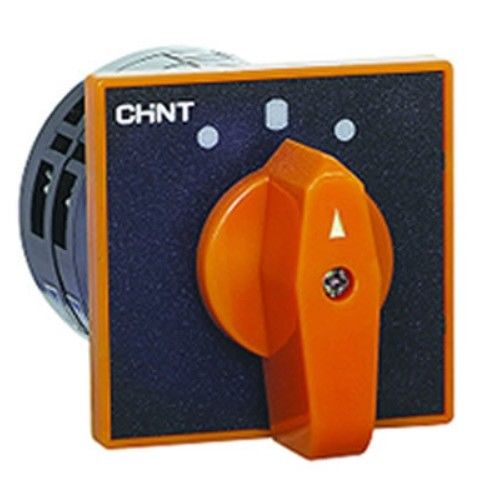

LW6 Series Cam Switch Rotary Changeover Switch 5A Universal Transfer Switch

LW6 Series Cam Switch Rotary Changeover Switch 5A Universal Transfer Switch

Product Description:

The LW6 series universal transfer switch is primarily suitable for use in machine tool control circuits with an alternating current frequency of 50 Hz or 60 Hz and a voltage up to 380 V AC, or a direct current voltage up to 220 V DC. This switch can be used to control and switch the circuits. It can also be used in other applications for switching control circuits, such as those for electromagnetic coils, electrical measuring instruments, and so on.

Meet the standard: GB/T14048.5,IEC 60947-5-1.

Product Specification:

Operating Conditions and Environmental Suitability:

●Ambient temperature is -5℃~+40°C, the average temperature during 24 hours couldn't exceed +35°C.

●Altitude: ≤2000m.

●Atmosphere condition:

1.Humidity: Relative humidity of the atmosphere couldn't exceed 50% when the highest temperature is +40°C; much higher relative humidity is allowable under the condition of lower temperature, for example, when the temperature reaches +20°C, the relative humidity is up to 90%, taking into account the condensation that may occur on the product surfaces due to temperature changes.

2.Pollution grade: 3.

●Installation condition:

1.Installation category: III.

2.The LW6 series universal transfer switch should be installed in an environment without significant shaking, impact, vibration, and without exposure to rain or snow.

3.It should be installed in an environment without the risk of explosion or substances that could corrode metals and damage insulation (including conductive dust).
