Energy Storage Integrated Cabinet Series XPH-20kw50kwh IP54 Rack Mounted

Name: Energy Storage Integrated Cabinet Series XPH-20kw50kwh IP54 Rack Mounted
Brand: Wenzhou Esperidin Import and Export Co., Ltd
SKU: XPH-20kw50kwh
Price: 5.00 USD
Availability: InStock

Product Details

Place of Origin: China

Certification: CE、MSDS

Model Number: XPH-20kw50kwh

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: Negotiable

Packaging Details: 545×430×285mm-547×875×450mm

Delivery Time: 5-8 weeks

Payment Terms: L/C,D/A,D/P,T/T

Supply Ability: 1000 pcs per mouth

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:

Communication Protocol:	CAN/RS485/WiFi (Optional)	Net Weight:	805-942kg
Protection Class:	IP54	Installation:	Rack - Mounted
Cycle Life:	6,000 Cycles	Output Phase:	Three - Phase
Input Power:	26000W/39000W	Storage Temperature:	-20～55℃

Communication Protocol:	CAN/RS485/WiFi (Optional)
Net Weight:	805-942kg
Protection Class:	IP54
Installation:	Rack - Mounted
Cycle Life:	6,000 Cycles
Output Phase:	Three - Phase
Input Power:	26000W/39000W
Storage Temperature:	-20～55℃

Description

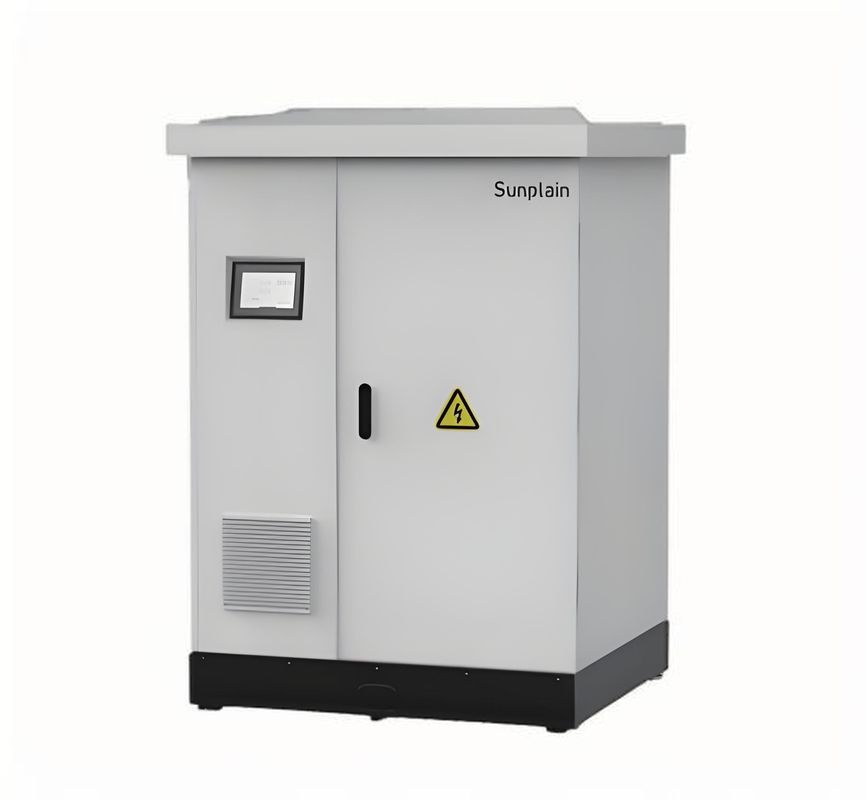

Energy Storage Integrated Cabinet Series XPH-20kw50kwh IP54 Rack Mounted

Energy Storage Integrated Cabinet Series XPH-20kw50kwh IP54 Rack Mounted

Product parameter

Model	XPH - 20kW50kWh	XPH - 30kW60kWh
Battery Pack Parameters
Battery Pack Energy	10.24kWh
Number of Battery Packs	5PCS	6PCS
Rated Energy	51.2kWh	61.44kWh
Nominal Voltage	512V	614.4V
Operating Voltage Range	432 - 576V	518.4 - 691.2V
Humidity	≤80%
Installation Method	Rack - mounted
Communication Protocol	CAN/RS485/WiFi (Optional)
Battery Pack Size	773×560×165mm
Battery Pack Packaging Size	900×620×385mm
Battery Pack Net Weight	85kg
PV Input Parameters
Maximum Open - Circuit Voltage	1000VDC
Initial Voltage	180VDC
MPPT Voltage Range	150 - 850VDC
Input Current	26 + 26A	36 + 36 + 36A
Maximum Input Current	39 + 39A	55 + 55 + 55A
Input Power	26000W	39000W
AC Output/Input Parameters
Rated Output/Input Current	30A	45A
Rated Output/Input Voltage	220/380/230/400VAC
Frequency	50Hz/60Hz (Self - adapting)
Rated Output Power	20000W	30000W
Output Phase	Three - phase
Maximum Bypass Load Current	80A	200A
General Parameters
Energy Storage Cabinet Size	1170×1031×1636mm
Energy Storage Cabinet Packaging Size	1300×1160×1850mm
Total Product Net Weight	805kg	942kg
IP Rating	IP54
Operating Temperature	0～55℃
Storage Temperature	-20～55℃
Cooling Method	Air - cooled/Natural Cooling
